• Projected area: 63㎡ + 31㎡ sunshade
• Tent dimensions: 8m x 10.7m
• Platform dimensions: 7.3m x 8m
• Indoor dimensions: 4m x 8m
• Exterior height (ceiling): 4.6m
• Interior height (ceiling/side): 2.85m/2.5m
• Structural materials: Steel and aluminum
• Wall specifications: 10-15cm prefabricated double-faced insulated wall
• Curtain wall specifications: 5/20A/5 insulated glass curtain wall
• Outer tent material: 1050g PVDF architectural membrane
• Inner tent material: Double-layer PVC coated fabric + 20-50mm insulation interlayer
• Wind resistance rating: Class 10
• Service life: 20 years
• Product features: Quick installation in 3 days; modular design; highly expandable

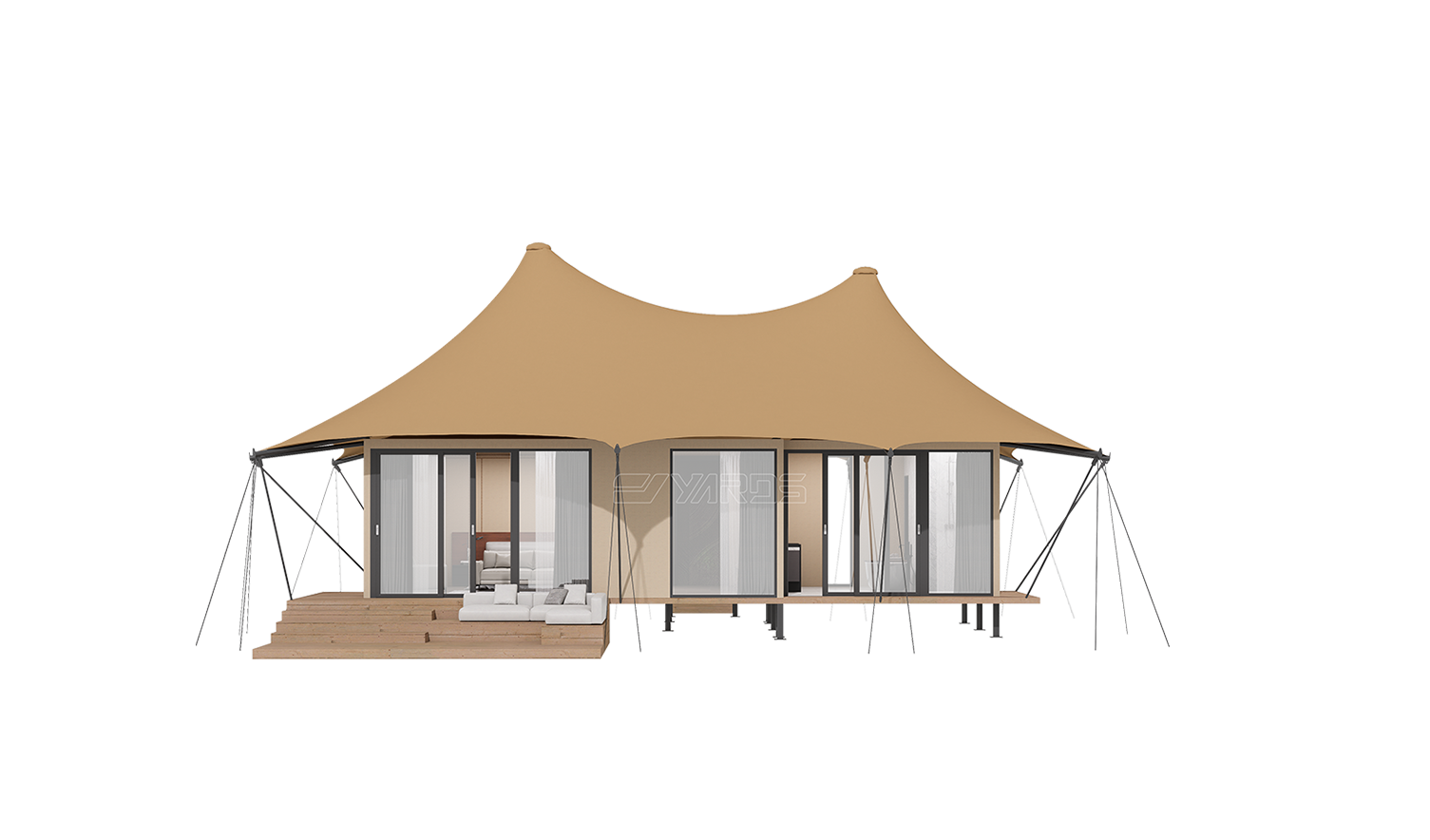

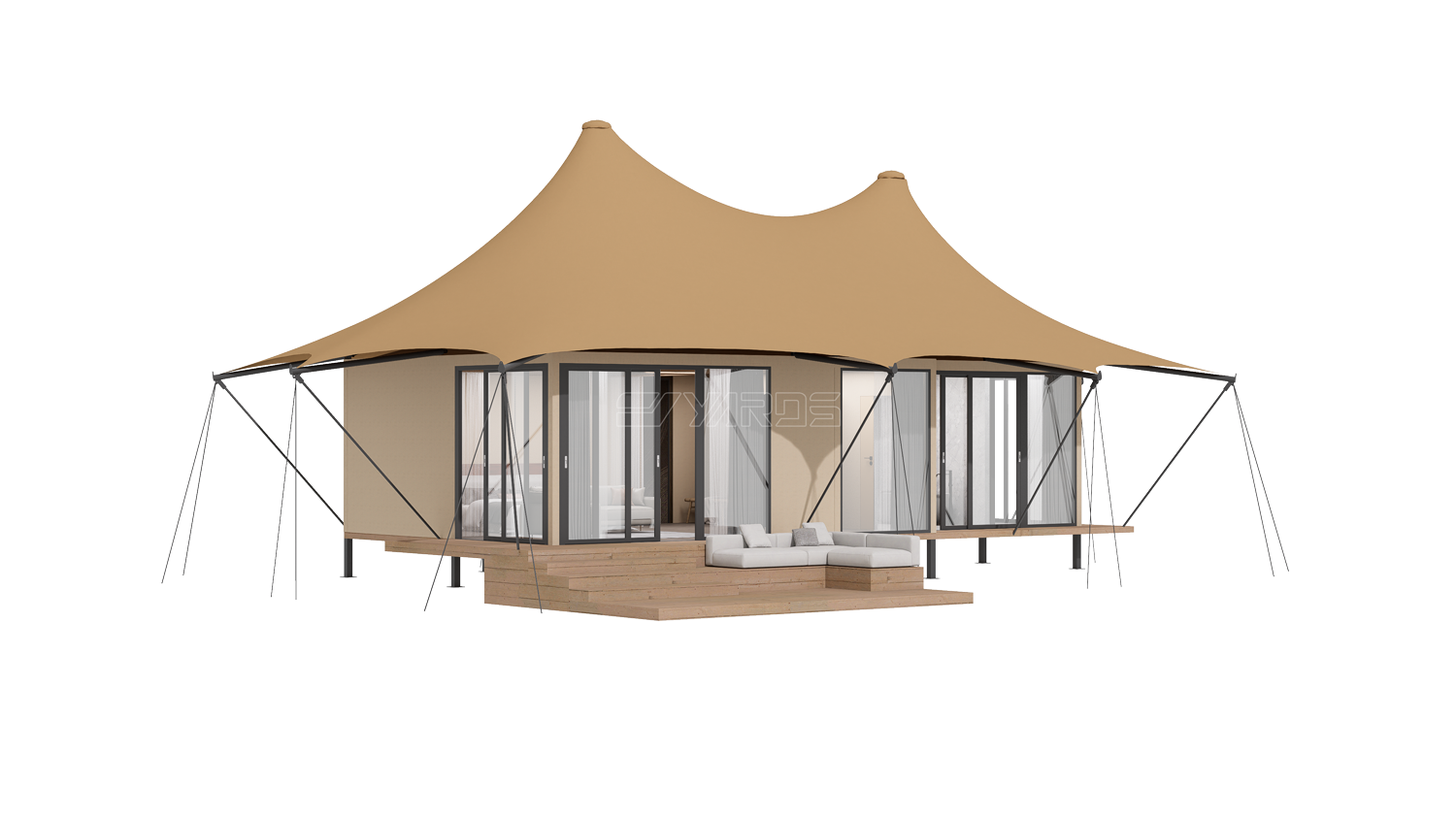

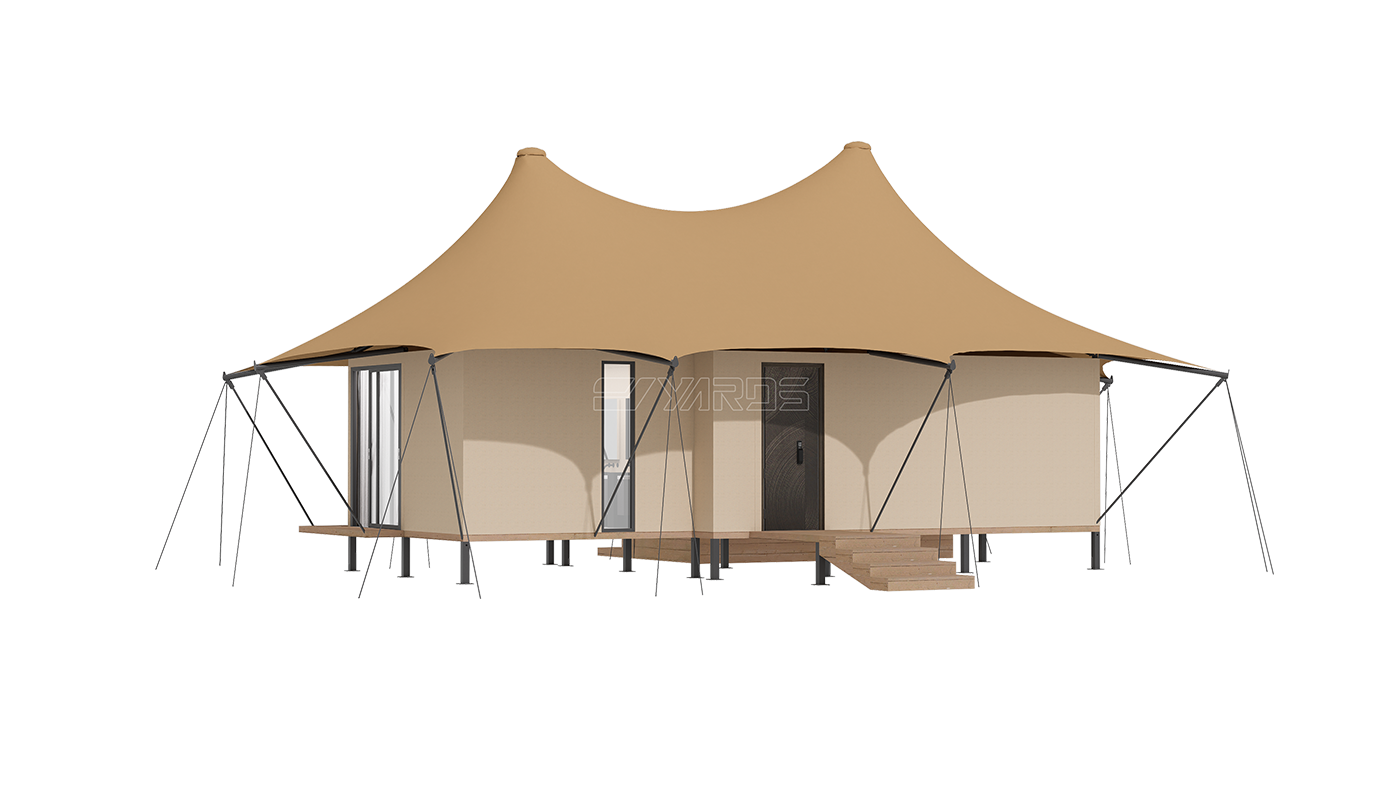

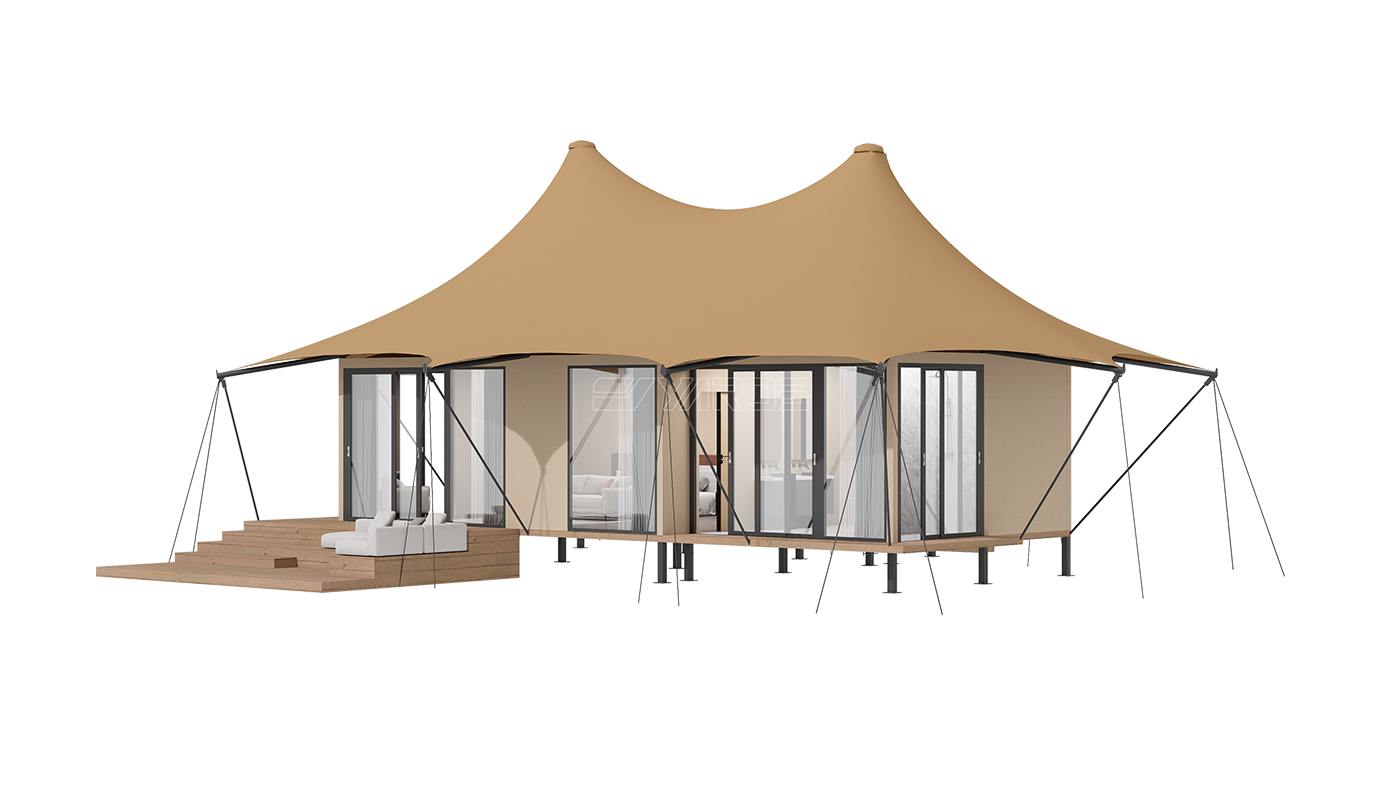

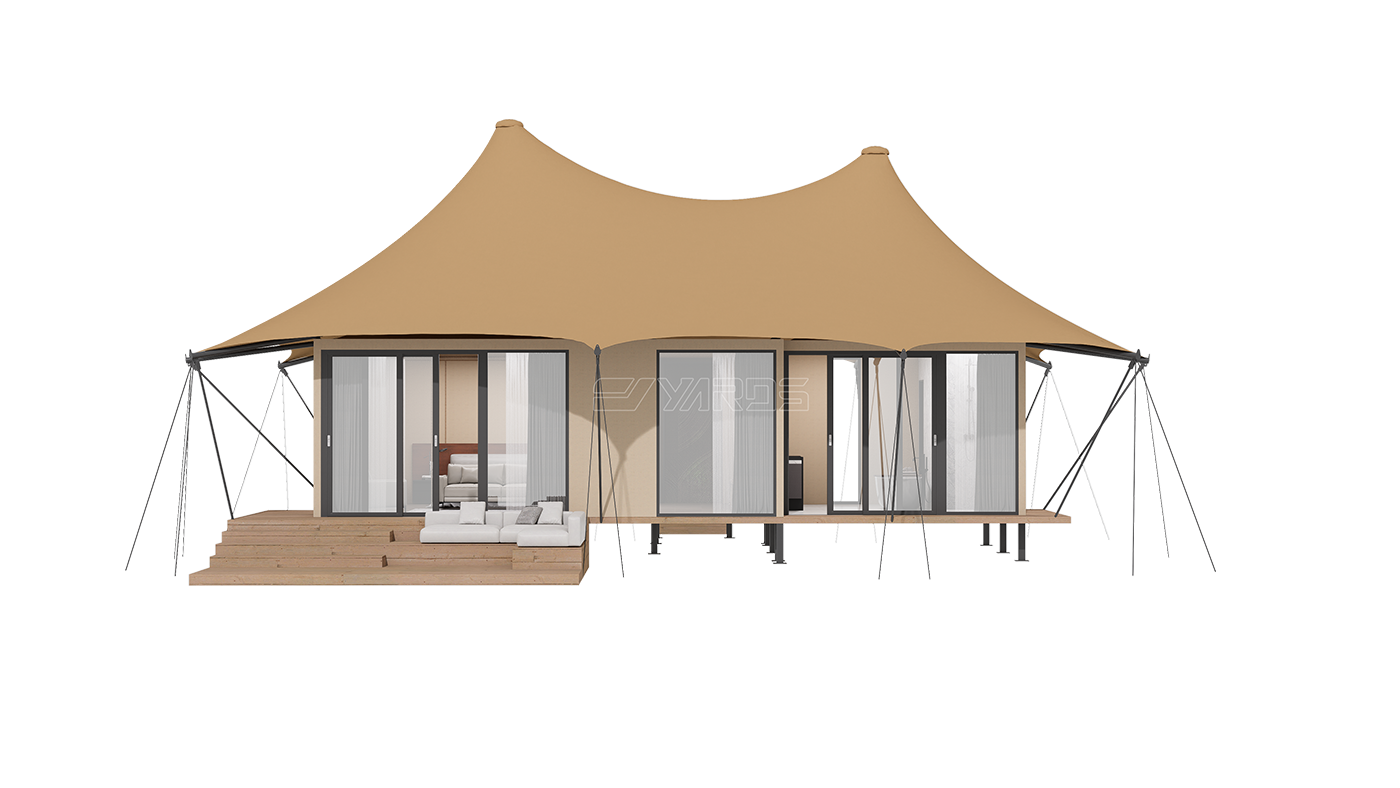

X32 tent houses are high-end vacation modular houses that are different from traditional buildings. They are not bound by terrain and can be built in high mountains, plains, deserts, lakes, seaside and other scenes.
Fast construction, low cost, good quality, and convenient movement are the advantages of Yards tents and the best choice for your camp.
Change configuration
House type

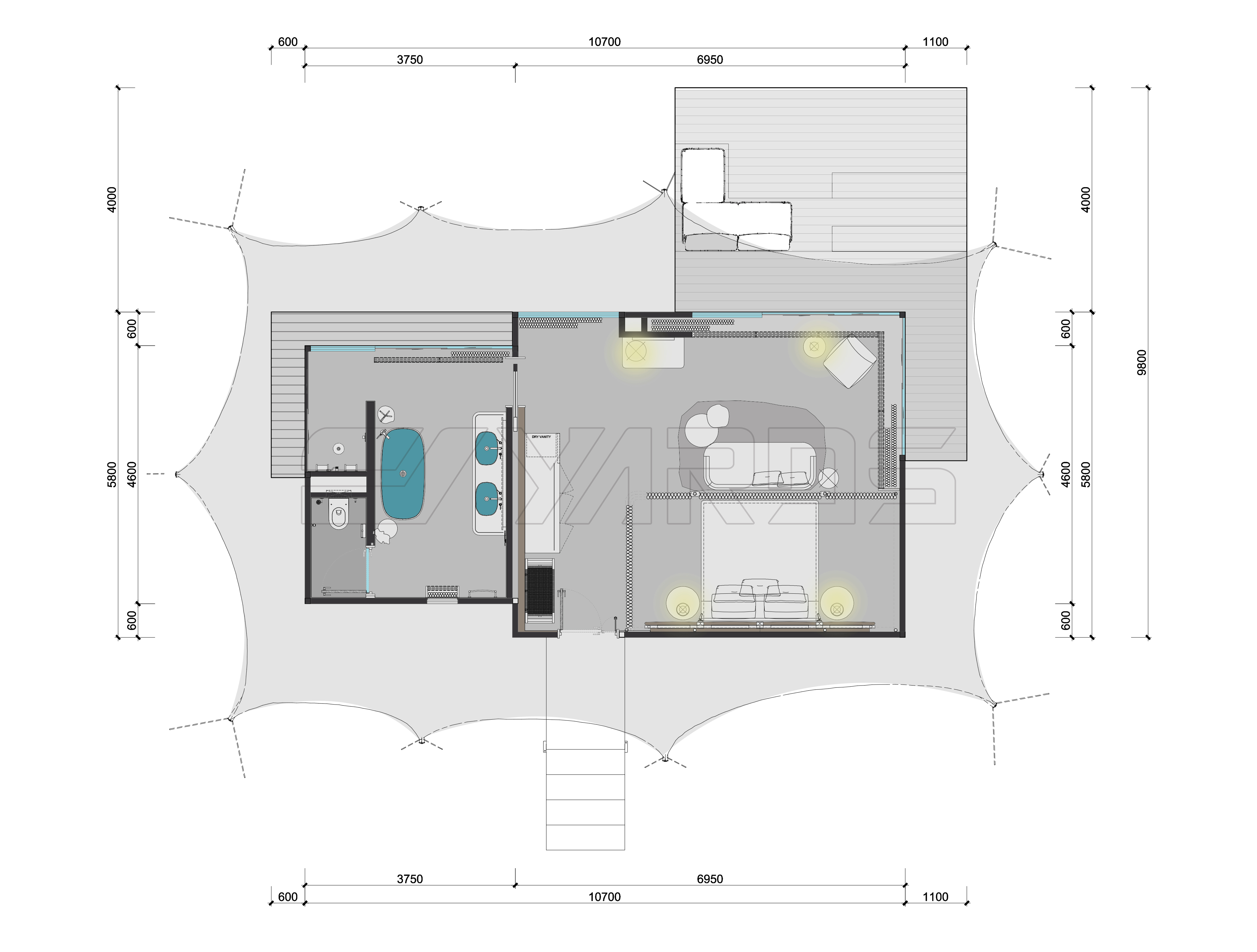

One bedroom, one living room, and one bathroom
Projected area
63m² + sunshade screen 31m²
Indoor dimensions
4m x8m
External height (top height/side height)
2.85m/2.5m
Wall material
90mm cloth veneer composite wall; Broken bridge aluminum hollow glass
Interior decoration
SPC waterproof flooring; Carbon crystal wanels and decorativeceilings;Aluminum composite panel wall
Standard Features
air conditioner; curtain Brand sanitary ware
overall performance
4-star standard, prefabricated structure, patterned interior, reusable
The design inspiration of X32 comes from the wild and dynamic vitality, and the freely relaxed shape symbolizes the beauty of individuality and originality. At the same time, it integrates tents, houses, and open terrace spaces, with a surrounding translucent design and a 360 degree panoramic view, balancing the natural wildness and the joy of life, perfectly integrating comfort and nature.
Hot-dip galvanized steel pipe is a kind of pipe material that forms a zinc layer on the surface of the steel pipe through a hot-dip galvanizing process. Specifically, the rust-removed steel pipe is immersed in molten zinc liquid, causing a zinc layer to adhere to the surface of the steel pipe. This process gives the steel pipe good corrosion resistance and can effectively extend the service life of the steel pipe in various environments.
PVDF building membrane material is a kind of membrane material with special properties, mainly made of polyvinylidene fluoride (PVDF). This kind of membrane material has excellent weather resistance, chemical corrosion resistance and abrasion resistance, and can be used to manufacture various types of building membrane structures. At the same time, it has excellent thermal insulation performance, which can effectively reduce energy consumption and environmental pollution.
"PVC exterior wall panels" refer to the panels made mainly from polyvinyl chloride (PVC) and used for the decoration and protection of building exterior walls. It has the characteristics of light weight, corrosion resistance, waterproof and moisture-proof, and easy installation. It can effectively resist the erosion of the external environment on the wall and, at the same time, play a role in beautifying the building appearance. It is often applied to the exterior wall decoration projects of various buildings.
